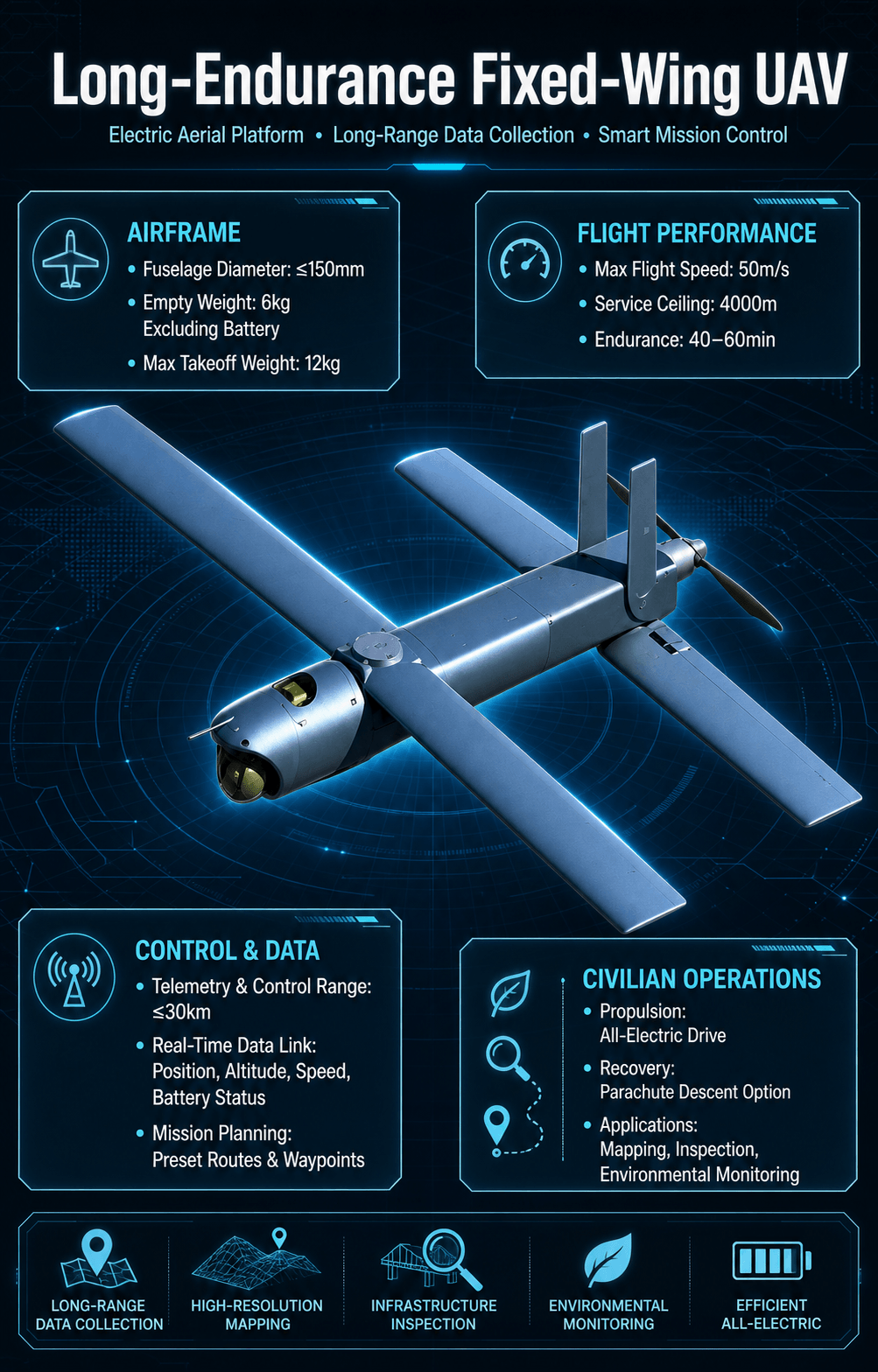

UAV:
1. Airframe diameter: ≤150mm
2. Empty weight (including EO/IR payload and data link; excluding battery): 6kg
3. Maximum flight speed: 50m/s
4. Operational radius: 100km
5. Service ceiling: 4000m
6. Launch method: Aerial drop or pneumatic tube launch
7. Maximum takeoff weight: 12kg
8. Payload capacity: 2–4kg
9. Cruising speed: 30m/s
10. Endurance: 40–60 min
11. Command and control range: ≤30km
12. Propulsion system: All-electric drive
13. Recovery method: No recovery / Parachute recovery
Launch Tube:
1. Dimensions: ≤150mm × 150mm × 1400mm
2. Launch method: Pneumatic ejection
3. Launch elevation angle: 38° ≤ α ≤ 42° | UAV exit velocity: 35m/s
4. Launch weight: ≥12kg
5. Operating air pressure: ≥1 MPa
6. Equipment weight: ≤20kg (excluding air pump)
