Fixed-wing UAV
$84,999.00
$85,099.00
2. Quick operations: One-key takeoff, landing, loitering, and altitude hold;
3. Remote takeoff/landing: Supports fully automatic takeoff and landing at remote locations;
4. Mission flight path: Automatically switches to execute the mission flight path after takeoff;
5. Cruise speed: 80–120 km/h;
6. Stall speed: 19 m/s;
7. Rotor emergency operation time: 6.5 minutes;
8. Endurance: 180 minutes (with 5 kg payload);
9. Operating temperature: -20°C to 55°C;
10. Wind resistance: Capable of flight in Level 7 winds and landing in Level 6 winds;
11. Minimum loiter radius: 200 meters;
12. Maximum level flight ceiling: 5,000 meters;
13. Rain resistance: Moderate rain;
14. Wireless control range: 50 km (line-of-sight, interference-free);

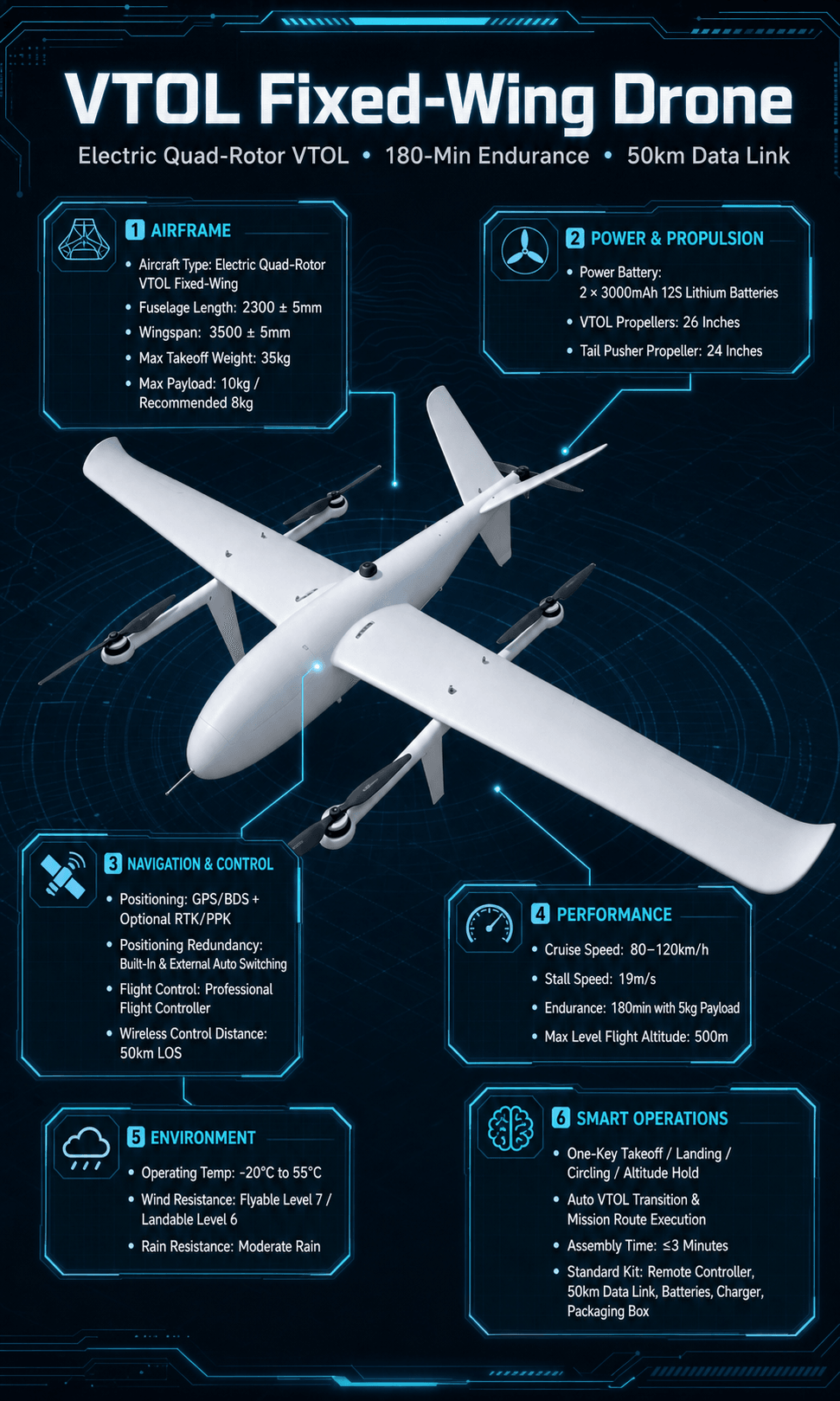

1. Aircraft Type: Electric quad-rotor VTOL fixed-wing;
2. Fuselage Length: 2300 ± 5 mm;
3. Wingspan: 3500 ± 5 mm;
4. Maximum Takeoff Weight: 35 kg;
5. Maximum Payload: 10 kg (recommended payload: 8 kg);
6. Propulsion Battery: 2 × 3000 mAh 12S LiPo batteries;
7. Takeoff/Landing Method: VTOL (Vertical Take-Off and Landing);
8. VTOL Propellers: 26-inch;
9. Fixed-wing Pusher Propeller: 24-inch;
10. Landing Safety Voltage: ≥ 44 V;
11. Number of Pitot Tubes: 2;
12. Flight Controller Type: "Zhanlang" (War Wolf) professional-grade flight controller;
13. Built-in Positioning: Integrated GPS/BDS positioning module;
14. External Positioning: External differential GPS/BDS (RTK, PPK, and dual-antenna heading functions available as options);
15. Positioning Redundancy: Supports mutual redundancy between built-in and external positioning with automatic switching;
16. Operational Modes: Supports automatic switching between VTOL and fixed-wing flight modes;
17. Quick Operations: One-key takeoff, landing, loitering, and altitude hold;
18. Remote Takeoff/Landing: Supports fully automatic takeoff and landing at remote locations;
19. Mission Flight Path: Automatically switches to mission flight path execution after takeoff;
20. Cruise Speed: 80–120 km/h;
21. Stall speed: 19 m/s;
22. Rotor emergency operation time: 6.5 minutes;
23. Endurance: 180 minutes (5 kg payload);
24. Operating temperature: -20°C to 55°C;
25. Wind resistance: Flight capable in Force 7 winds; landing capable in Force 6 winds;
26. Minimum loitering radius: 200 m;
27. Maximum level flight ceiling: 5,000 m;
28. Rain resistance: Moderate rain;
29. Wireless control range: 50 km (line-of-sight, interference-free);
30. Mission bay location: Center of the fuselage underside;
31. Assembly time: ≤3 minutes;
32. Standard inclusions: 2.4 GHz remote controller and 840 MHz 50 km data link radio;
33. Standard inclusions: Two 12S 30,000 mAh high-voltage batteries;
34. Standard inclusions: Dual-channel charger;
35. Standard inclusions: Carrying case (1700 x 730 x 600 mm);
